了解基本知識：KeyShot照明和材料

本教程將介紹應用和修改材質以及在KeyShot中照明場景的基本知識。 我將展示我使用的不同的材料和我創建的照明設置，來呈現我的形象-梅爾曼。

This tutorial will cover the basics of applying and modifying materials, and lighting a scene in KeyShot. I will show the different materials I have used and the lighting setup I have created to render my image Mer-Man.

Step 1: Sending model from ZBrush to KeyShot

From ZBrush, it is now very easy to send your finished model to KeyShot with the KeyShot bridge. Just go to the Render menu and in the External Renderer palette, click on the button KeyShot, then, do a BPR render to send your model automatically to KeyShot.

步驟1：將模型從ZBrush發送到KeyShot

從ZBrush，現在很容易使用KeyShot橋?qū)⒛�完成的模型發送到KeyShot。 只需去渲染菜單，在外部渲染器調色板中，點擊按鈕KeyShot，然后，做一個BPR渲染，以自動發送你的模型到KeyShot。

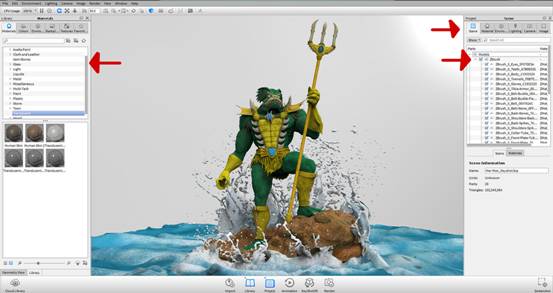

Step 2: Overview of KeyShot's interface

You can see that KeyShot has imported your model perfectly, with its textures applied to it. On the right panel, you will find your model, with all its different SubTools, that can still be selected separately. On the top of this panel, you will find the different tabs where we will modify and create the Materials, Lighting and Cameras. On the left panel is the library where all the Materials, Colors, Environment maps and other textures are located.

步驟2：KeyShot的接口概述

你可以看到KeyShot已經完美地導入了你的模型，其紋理應用到它。 在右側面板上，您將找到您的模型及其所有不同的SubTools，它們?nèi)匀豢梢詥为氝x擇。 在此面板的頂部，您將找到我們將要修改并創建材質，照明和照相機的不同選項卡。 在左側面板上是所有材質，顏色，環境貼圖和其他紋理所在的庫。

Step 3: Apply a material to your model

To apply a material, simply choose one from the library and click and drag this material to the part of the model you want it to be applied. Alternatively, you can click and drag the material on the name of the SubTool (or on the group if you want all the SubTools to have the same material) on the right panel. Upon clicking on a material, KeyShot will remind you to Hold Alt if you want to retain the texture of your model. So if you want to change the material but keep the texture, hold ALT then click and drag the material to your mesh.

步驟3：向您的模型應用材料

要應用材質，只需從庫中選擇一個，然后單擊并將該材質拖動到要應用材質的模型部分。 或者，您可以在右面板上單擊并拖動SubTool（或在組上，如果您希望所有SubTools具有相同的材料）的名稱上的材質。 點擊某個材質后，如果您想保留模型的紋理，KeyShot會提醒您按住Alt鍵。 因此，如果您想更改材質但保留紋理，請按住ALT，然后單擊并將材質拖動到您的網格。

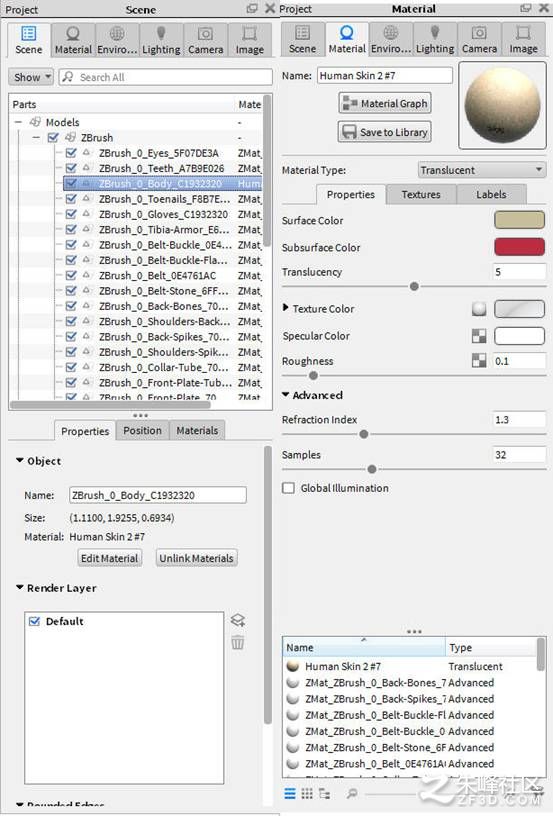

Step 4: Modify the material

To modify a material, double-click on the SubTool with the material you want to modify and the Material tab will open in the scene panel. Here you will find different parameters to modify its colors, specular, and so on. All the materials don't have the same parameters; in this example, this one has a subsurface property which you won't find on other materials such as metals.

步驟4：修改材料

要修改材質，雙擊要修改的材質的SubTool，材質選項卡將在場景面板中打開。 在這里你會找到不同的參數來修改其顏色，鏡面等等。 所有的材料沒有相同的參數; 在這個例子中，這個有一個地下屬性，你不會找到其他材料，如金屬。

Step 5: Changing the textures

Still in the Material panel, next to the Properties tab, you will find the Textures, where you can change or add additional textures to your material. Not all the materials have the same texture slots, depending on their properties.

步驟5：更改紋理

仍然在“材質”面板中，在“屬性”選項卡旁邊，您將找到“紋理”，您可以在其中更改或向材質添加其他紋理。 不是所有的材料具有相同的紋理槽，這取決于它們的性質。

Step 6: All shaders applied

Here you can see my model with the main materials applied to each SubTool.

In the next chapter, I will show how I rendered the different passes that I then used in Photoshop to composite the final image.

步驟6：應用所有著色器

在這里你可以看到我的模型，主要材料應用到每個SubTool。

在下一章中，我將演示如何渲染不同的通道，然后我在Photoshop中使用它們來組合最終的圖像。
