制作“精靈”

3D角色建模師Vahid Ahmadi用Pureref、ZBrush和Photoshop等方法，打破了他創造女性小精靈的過程。

3D character modeler Vahid Ahmadi breaks down his process for creating his female elf, using Pureref, ZBrush, and Photoshop...

步驟1:組成和收集參考

首先下載免費軟件叫做pureref免費從這個地址。用起來非常簡單，只需簡單拖動所有的照片參考。然后在保存選項卡中點擊導出 - 它將為您制作照片拼貼。 在做任何事情之前，我用非�；�本的形狀來操縱我的場景，以想象可能的問題

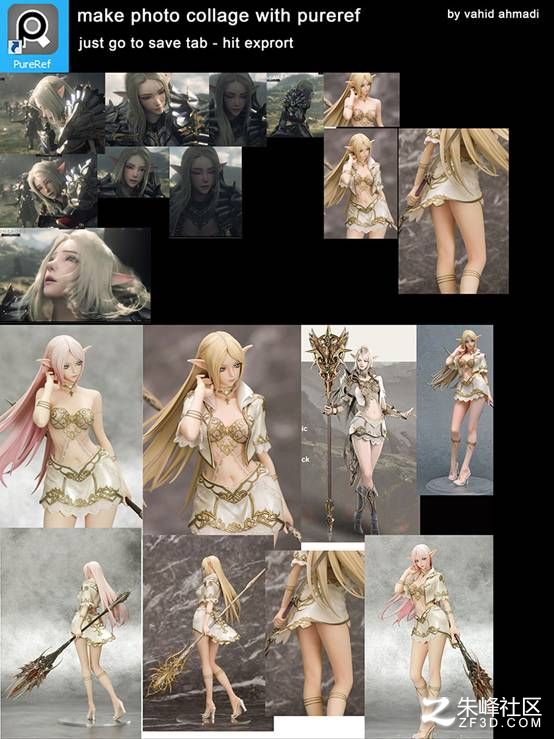

Step 1: Composition and gathering references

First of all download the free software called pureref for free from this address. It's very simple to use just simply drag all your photo references there and hit export in the save tab - it will make a photo collage for you. Before doing anything I rig my scene with very basic shapes to imagine possible problems.

第2步：制作頭發和頭發光澤

我使用的ZBrush IMM頭發

對于頭發反射，我使用了一些基本材料，在燈光部分進行了一些調整，如左圖所示。 您必須轉到光源屬性曲線，然后像圖片一樣更改配置文件，還可以將環境更改為零。 對于第二部分，進入基本材質設置，增加鏡面反射率值，改變與圖像相似的規格曲線，以增加對比度。

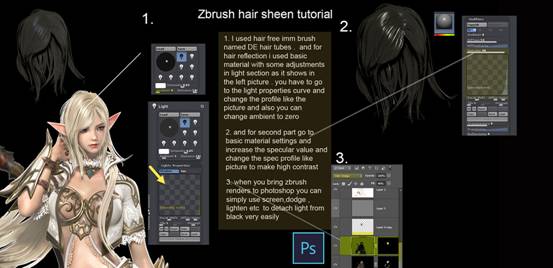

Step 2: Making hair and hair sheen

I use ZBrush IMM hair

For hair reflection I used a basic material with some adjustments in the light section, as it shows in the left image. You have to go to the light properties curve and change the profile like the picture, and also you can change ambient to zero. For the second part go to the basic material settings and increase the specular value and change the spec profile similar to the image to increase the contrast.

步驟三:在ZBrush中繪制水彩畫技巧

這是我經常在ZBrush中使用的工作流。我使用平面的顏色，在ZBrush的平面材料上手工繪制基本的線條、高光、陰影和顏色，以控制顏色和突出顯示我想要的顏色。我使用了標準的刷子和不同的RGB強度配置文件來制作硬筆刷。

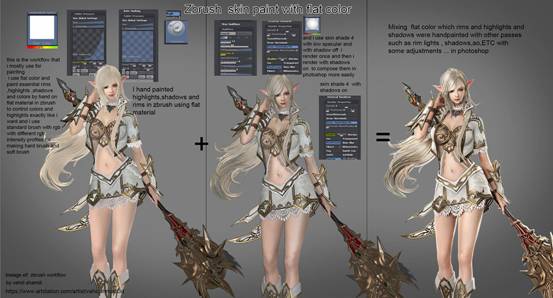

Step 3: Polypainting tips in ZBrush

This is the workflow that I so often use for painting in ZBrush. I use a flat color and paint the essential rims, highlights, shadows, and colors by hand on a flat material in ZBrush, to control the colors and highlights exactly as I want. I used a standard brush with different RGB intensity profiles for making a hard brush.

步驟4:確定

精靈血統皮膚是“膚色4”，彌漫性設定為100，規格級別為平面色組合。 材質是前面提到的手繪規格，邊框和高光，使用ZBrush BPR和陰影設置完成渲染，如下圖所示，并始終關閉鮮艷的陰影，因為它會導致額外的飽和度和燒焦的顏色。

Step 4: Finalize

The elf lineage skin is 'skin shade 4' with diffuse set to 100 and spec level to 3D with a combination of flat colors. The material is hand-painted spec, rims, and highlights as mentioned earlier, and the render is done by using ZBrush BPR with the shadow settings as the picture below, and always turn off vibrant shadows because it causes extra saturation and burned colors.

第5步：關于更多材料和繪畫

我開始使用帶有低RGB強度的標準刷子在ZBrush內部繪制模型，并使用一些ZBrush默認alpha的顏色噴涂。 我也用聚光燈投影。 我使用了ZBrush雙色材料，基礎材料，皮膚陰影，通過弄spec，diffuse和reflectivity值來創建金，皮革，皮膚和織物材料。 有關ZBrush內部制作材料的文章中有更多信息，您可以在這里閱讀。

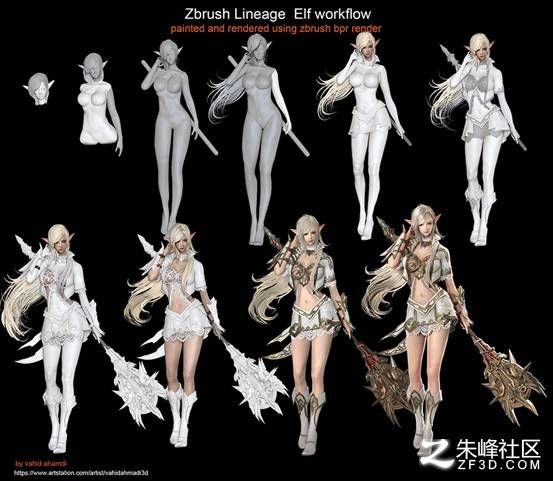

Step 5: More about materials and painting

I started painting the model inside of ZBrush using standard brushes with low RGB intensity and using color spray with some ZBrush default alphas. I also used spotlight projections. I used a ZBrush double shade material, basic material, skin shade to create the gold, leather, skin, and fabric materials by playing around with spec, diffuse, and reflectivity values . There is more info in the article about making materials inside of ZBrush that you can read here.

第6步：使用ZBrush BPR進行渲染

我用不同的陰影，輪廓燈，平面顏色等來渲染她，并且在ZBrush和Photoshop中也使用了具有不同相機角度的HDRI照明渲染。

Step 6: Rendering with ZBrush BPR

I rendered her with different shadows, rim lights, flat color, and so on, and also used HDRI lighting renders with different camera angles in ZBrush and Photoshop.

第7步：Photoshop混合ZBrush通行證

一旦在Photoshop中，我能夠創建多個通行證，然后使用Multiply級別進行組合。像往常一樣,我的水平直到我滿意最終的結果,然后叫它完成了!

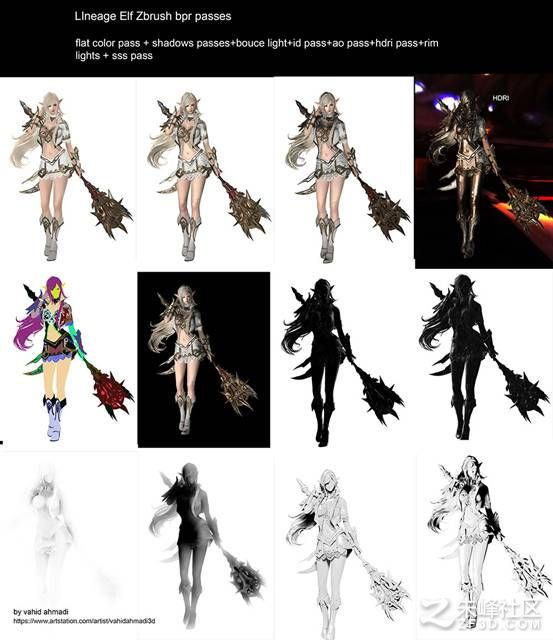

Step 7: Photoshop to mix ZBrush passes

Once in Photoshop I was able to create multiple passes and then combine them using the Multiply levels. As always, I played around with the levels until I was satisfied with the final result, and then called it finished!
