Unity組件：Render Settings 渲染設置

The Render Settings contain default values for a range of visual elements in your scene, like Lights and Skyboxes.

To see the Render Settings choose Edit->Render Settings from the menu bar.

渲染設置包括一系列場景中的視覺元素的默認值，例如燈光和天空盒。菜單中Edit->Render Settings可以打開渲染設置。

Properties 屬性

• Fog 霧
  If enabled, fog will be drawn throughout your scene.
  如果啟用，場景中將繪制霧效。
• Fog Color 霧的顏色
  Color of the fog. 霧的顏色
• Fog Mode 霧的類型
  Fog mode: Linear, Exponential (Exp) or Exponential Squared (Exp2). This controls the way fog fades in with distance.
  霧的類型：線性，指數(Exp)，指數平方(Exp2)。霧的類型用來控制霧隨距離的變化。
• Fog Density 霧的濃度
  Density of the fog; only used by Exp and Exp2 fog modes.
  僅用于指數(Exp)，指數平方(Exp2)類型
• Linear Fog Start/End
  線性霧開始/結束距離
  Start and End distances of the fog; only used by Linear fog mode.
  設置霧的開始和結束距離，僅用于線性霧。
• Ambient Light 環境光
  Color of the scene's ambient light. 場景中環境光的顏色
• Skybox Material 天空盒材質
  Default skybox that will be rendered for cameras that have no skybox attached.
  如果沒有設置相機的天空盒，將會渲染默認的天空盒材質。
• Halo Strength 光暈強度
  Size of all light halos in relation to their Range.
  燈光光暈的大小與距離有關。
• Flare Strength 耀斑強度
  Intensity of all flares in the scene. 場景中耀斑強度。
• Halo Texture 光暈材質
  Reference to a Texture that will appear as the glow for all Halos in lights.
  燈光光暈的紋理。
• Spot Cookie 聚光燈投影遮罩
  Reference to a Texture2D that will appear as the cookie mask for all Spot lights.
  聚光燈的遮罩紋理。

Details 細節

The Render Settings is used to define some basic visual commonalities of any individual scene in your project. Maybe you have two levels in the same environment: one at daytime and one at nighttime. You can use the same meshes and Prefabs to populate the scene, but you can change the Ambient Light to be much brighter at daytime, and much darker at night.

渲染設置用來定義項目場景的一些基本的圖形共性。例如同一個場景中有2個關卡：一是在白天，另一個是夜間。您可以使用相同的模型和預制件來構建場景，然后改變2者的環境光，白天明亮，而晚上黑暗。

Fog 霧

Enabling Fog will give a misty haze to your scene. You can adjust the look and color of the Fog with Fog Density and Fog Color, respectively.

開啟霧效將會在場景中繪制霧靄。你可以分別調整霧的顏色和密度。

Adding fog is often used to optimize performance by making sure that far away objects fade out and are not drawn. Please note that enabling fog is not enough to enable this performance optimization. To do that you also need to adjust your Camera's Far Clip Plane, so that geometry far away will not be drawn. It is best to tweak the fog to look correct first. Then make the Camera's far clip plane smaller until you see the geometry being clipped away before the fog fades it out.

開啟霧效通常用于優化性能，霧可以讓遠處的物體淡出而不進行繪制。請注意，僅開啟霧效是不足以優化性能的，你還需要調整相機的遠剪裁面，使遠處的物體不被繪制。最好先調整霧效得到正確的視覺效果，然后調小相機的遠裁剪面，使得幾何體在霧變淡前被裁減掉。

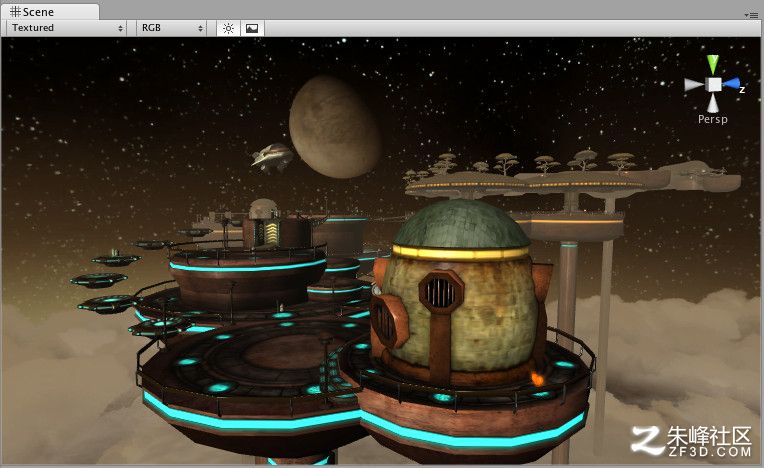

A scene with Fog turned off 關閉了霧效的場景

The same scene with Fog turned on 開啟了霧效的場景

Note that fog is rendered uniformly in orthographic camera mode. This is because in our shaders, we output post-perspective space Z coordinate as the fog coordinate. But post-perspective Z is not really suitable for fog in orthographic cameras. Why do we do this? Because it's fast and does not need any extra computations; handling orthographic cameras would make all shaders be a bit slower.

請注意，正交相機模式下霧是均勻繪制的。這是因?yàn)樵谥�色器中，我們將視角空間變換后的Z坐標作為霧的坐標。但在正交相機中，視角空間的Z坐標并不適用于霧效。我們?yōu)槭裁匆�這樣做呢？因?yàn)檫@種方法速度快，不需要任何額外的計算。處理正交相機會讓所有著色器速度變得有點慢。

Hints 提示

• Don't under-estimate the visual impact your game can make by thoughtfully tweaking the Render Settings!
  不要低估仔細調整渲染設置后為游戲帶來的視覺沖擊力。
• Render Settings are per-scene: each scene in your game can have different Render Settings.
  渲染設置是針對每個場景的，每個場景都可以有不同的渲染設置。
