Unity組件：Transform 變換

The Transform Component determines the actual Position, Rotation, and Scale of all objects in the scene. Every object has a Transform.

變換組件決定了場景中所有物體的方位，旋轉和縮放。每個物體都有一個變換組件。

The Transform Component is viewable and editable in the Inspector
變換組件在檢查窗中是可見且可編輯的

Properties 屬性

• Position 位置
  Position of the Transform in X, Y, and Z coordinates.
  以X、Y、Z坐標系表示變換的位置。
• Rotation 旋轉
  Rotation of the Transform around the X, Y, and Z axes, measured in degrees.
  表示此變換以X，Y，Z軸為準的旋轉程度，以角度為單位。
• Scale 縮放
  Scale of the Transform along X, Y, and Z axes. Value "1" is the original size (size at which the object was imported).
  沿著X，Y，Z軸縮放此變換。值為"1"時表示原始尺寸（物體最初被導入時的大小）

All properties of a Transform are measured relative to the Transform's parent. If the Transform has no parent, the properties are measured relative to World Space.

變換組件的所有屬性都是相對其父物體進行衡量的，如果此物體沒有父物體，這些屬性則相對于世界坐標進行計算。

Using Transforms 使用變換組件

Transforms are always manipulated in 3D space using X, Y, and Z axes. In Unity, these axes are represented by the colors red, green, and blue respectively. Remember: XYZ = RGB.

變換組件在三維空間中始終使用X，Y，Z軸進行操作，在Unity中，這些坐標軸分別被標注為紅，綠，藍三種顏色，牢記：XYZ=RGB

Color-coded relationship between 3 axes and Transform properties
變換組件屬性中三個坐標軸所對應的顏色關系。

Transform Components can be directly manipulated using the Scene View or the Inspector. The Inspector will list the properties stated above for easy editing. You can also modify Transforms in your Scene by interacting with them, using the Move, Rotate, and Scale tools. These tools are located in the upper left-hand corner of the Unity Editor.

變換組件可以在Scene視圖或監視窗中即時的進行操作，在監視窗上會列出它的屬性并且可以簡單的進行編輯，你也可以通過使用移動，旋轉和縮放工具來修改場景中物體的變換屬性，這些工具在Unity編輯器的坐上角位置可以找到。

The View, Translate, Rotate, and Scale tools
觀察，移動，旋轉和縮放工具。

The tools will be usable on any object in your scene. Click on the object, and you will see the tool gizmo appear around it. Depending on the current tool, the gizmo will look slightly different. Clicking the object will also cause the Transform component to become visible in the Inspector. If the Inspector does not display the Transform component or its properties, then you do not have an object highlighted in the Scene View.

這些工具可以用于你場景中的任何物體，在物體上單擊，你將會看到當前選中的工具的線框顯示在物體周圍，這些線框看起來各不相同，點擊物體也會使變換組件的屬性顯示在監視窗中，如果如果監視窗中沒有顯示任何變換組件或?qū)傩�，那么此時場景中沒有高亮的物體（沒有被選中的物體）。

All three Gizmos can be directly edited in Scene View.

這三種線框可以直接在Scene視圖中進行操作。

To manipulate the Transform, click and drag on one of the 3 gizmo axes, you'll notice its color changes. As you drag the mouse, you will see the object translate, rotate, or scale along the axis. When you release the mouse button, you'll notice that the axis remains selected. You can click the middle mouse button and drag the mouse to manipulate the Transform along the selected axis. To access all 3 axes at once click and drag the center point of all 3 gizmos.

若想操作變換屬性，只需在三個線框坐標軸上點擊并拖動，你會發現被點擊的軸顏色改變了，當你用鼠標拖動時，你會看到物體會沿著這些軸移動，旋轉或縮放。當你釋放鼠標按鍵時，你會發現坐標軸仍處于選中狀態，你可以點擊鼠標中鍵并拖動來操作物體沿著選中坐標軸的變換，如果想同時操作三個坐標軸，那么就點擊并拖動三個坐標軸線框的中點。

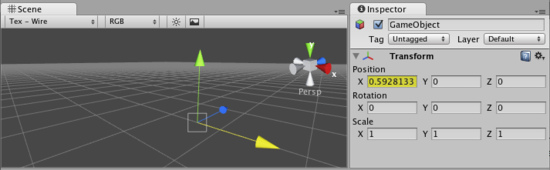

Any individual axis will become selected when you click on it
當你點擊一個單獨的坐標軸時它會被選中。

Parenting 父子化

Parenting is one of the most important concepts to understand when using Unity. When a GameObject is a Parent of another GameObject, the Child GameObject will move, rotate, and scale exactly as its Parent does. Just like your arms are attached to your body, when you turn your body, your arms move because they're attached. Any object can have multiple children, but only one parent.

在Unity中父子化是一個非常重要的概念。當一個游戲?qū)ο笫橇硪粋�游戲?qū)ο蟮母肝矬w時，其子游戲?qū)ο髸�隨著它移動、旋轉和縮放，就像你的胳膊屬于你的身體，當你旋轉身體時，你的胳膊也會跟著旋轉一樣。任何物體都可以有多個子物體，但只能有一個父物體。

You can create a Parent by dragging any GameObject in the Hierarchy View onto another. This will create a Parent-Child relationship between the two GameObjects.

你可以通過在層級視窗中把一個物體拖放到另一個物體之上來創建父物體，這將創建一個父子關系關聯這兩個游戲?qū)ο蟆?/p>

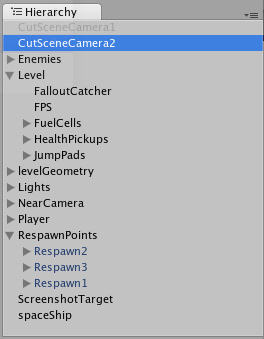

A real-world example of a Parent-Child hierarchy. All the GameObjects with arrows to the left are Parents.
一個父子層級實例。左側帶有箭頭的都是父物體。

In the above example, we say that the arms are parented to the body, and the hands are parented to the arms. The scenes you make in Unity will contain collections of these Transform hierarchies. The topmost parent object is called the Root object. When you move, scale, or rotate a parent, all the changes in its Transform are applied to its children as well.

在上面的例子中，我們說胳膊的父物體是身體，手的父物體是胳膊，你在Unity中的場景會包含這些變換層級的集合，最外層的父物體對象被稱作根對象，當你移動、縮放或旋轉一個父物體，所有的變換也會應用于其子物體。

It is worth pointing out that the Transform values in the Inspector of any Child GameObject are displayed relative to the Parent's Transform values. These are also called the Local Coordinates. Through scripting, you can access the Global Coordinates as well as the Local Coordinates.

由此可見監視窗中任意一個子物體所顯示的值都是相對于其父物體的，這也稱作局部坐標系，通過編寫腳本，你可以像使用局部坐標系一樣使用世界坐標系。

You can build compound objects by parenting multiple separate objects together, like the skeletal structure of a human ragdoll. You can also create small yet effective objects with single parents. For example, if you have a horror game that takes place at night, you can create an effective atmosphere with a flashlight. To create this object, you would parent a spotlight Transform to the flashlight Transform. Then, any alteration of the flashlight Transform will affect the spotlight, creating a convincing flashlight effect.

你可以通過子化多個獨立的對象來建立符合對象，例如人體骨骼結構玩偶，你也可以使用單層父物體來創建小而有效的對象，例如，你想做一個夜晚時分的恐怖游戲，你可以使用閃光燈來創造一個很好的氣氛，創建這個對象時，你可以用一個聚光燈作為閃光燈的子物體，然后任何對于閃光燈的改動都會影響到聚光燈，制作出一個逼真的閃光燈。

Importance of Scale 縮放的重點內容

The scale of the Transform determines the difference between the size of your mesh in your modeling application, and the size of your mesh in Unity. The mesh's size in Unity (and therefore the Transform's scale) is very important, especially during physics simulation. There are 3 factors that can determine the Scale of your object:

縮放變換決定了你的網格在建模應用程序和Unity之間的尺寸差異，網格的尺寸(取決于變換縮放)在Unity中十分的重要，特別是在物理仿真時。我們有三個系數來控制物體的縮放：

• The size of your mesh in your 3D modeling application.
  網格在3D建模應用程序中的尺寸。
• The Mesh Scale Factor setting in the object's Import Settings.
  導入設置中的網格縮放比例系數
• The Scale values of your Transform Component.
  變換組件的縮放值

Ideally, you should not adjust the Scale of your object in the Transform Component. The best option is to create your models at real-life scale, so you won't have to change your Transform's scale. The second-best option is to adjust the scale at which your mesh is imported in the Import Settings for your individual mesh. Certain optimizations occur based on the import size, and instantiating an object that has an adjusted scale value can decrease performance. For more information, read through the Rigidbody component's section on optimizing scale.

理論上，你可以無需調整物體變換組件中的縮放參數，最好的選擇是在創建模型時使用顯示比例縮放，這樣你就可以不用調整變換縮放，第二種選擇是在導入設置中調整每個網格的縮放比例。某些優化是基于導入尺寸的，假如一個對象進行縮放調整時會降低一些性能。想要了解更多信息，閱讀剛體組件的最佳化縮放一節。

Hints 提示

• When parenting Transforms, put the parent's location at 0,0,0 before applying the child. This will save you many headaches later.
  當父子化變換組件時，在添加子物體之前將父物體放置到坐標0,0,0位置，這將免去你之后的很多麻煩。
• Particle Systems are not affected by the Transforms Scale. In order to scale a Particle System, you need to modify the properties in the System's Particle Emitter, Animator and Renderer.
  粒子系統不受縮放變換影響，如果想要縮放粒子系統，你需要修改粒子系統中粒子發射器、動畫、和渲染屬性。
• If you are using Rigidbodies for physics simulation, there is some important information about the Scale property to be read on the Rigidbody page.
  如果你使用剛體用于物理仿真，剛體頁面這里讀到一些重要信息關于縮放屬性。
• You can change the colors of the Transform axes (and other UI elements) from the Unity Menu->Preferences->Colors & keys.
  你可以修改變換組件坐標軸（和其他用戶界面元素）的顏色通過菜單調用Unity Menu->Preferences->Colors & keys
• If you can avoid scaling, do so. Try to have the scales of your object finalized in your 3D modeling application, or in the Import Settings of your mesh.
  如果你想避免縮放，那就這樣做，試著在3D建模應用程序中或?qū)�入設置中定型你的網格。
